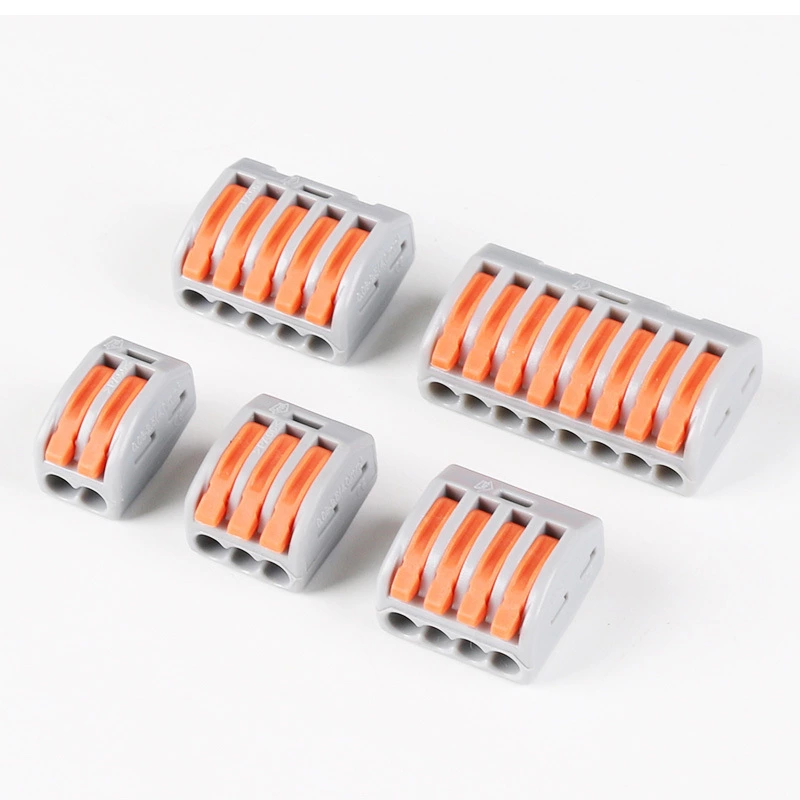

Gray Wiring Connector
Technical Information:
- Product name:Wire Connector
- Material:PC
- Contact material:Copper Tin Plated
- Color:Grey
- Certificate:CE ROHS
- Connector type:Crimp Connection
- Rated Voltage:400V
- Rated Current:32A
- Size:21.1x12.5x14.5(mm)
Installation Process:
- Strip conductor to 10mm/0.4in.
- Pull the handle to 90° ,and put the wire into the wiring hole.
- After inserting the wire, put the handle down.
- After wiring,test it at the buttom.

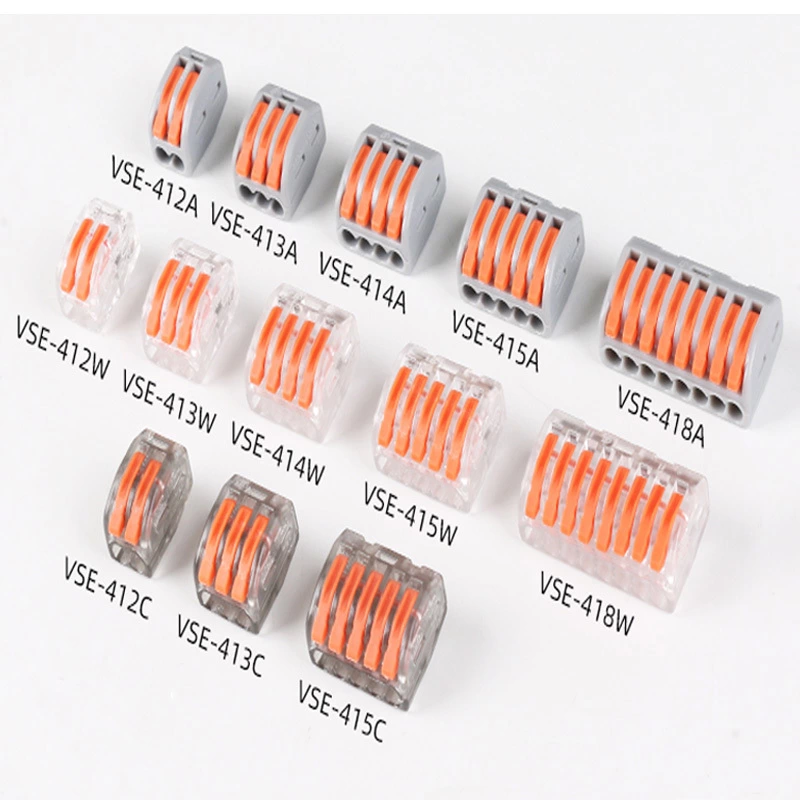

Available Size:
|
Item.No |
Rated voltage |
Rated current |
Wire diameter |
Strip length |
Colour |
Dimension |
|
V |
A |
mm²/AWG |
mm²/AWG |
L*W*H（mm） |
||
|
VSE-412A |
400 |
32 |
10/0.4 |
Gray |
21.1*12.5*14.5 |
|
|
VSE-413A |
0.08-4.0 |
21.1*17.1*14.5 |
||||
|
VSE-414A |
28-11 |
21.1*21.7*14.5 |
||||
|
VSE-415A |
21.1*26.6*14.5 |
|||||
|
VSE-418A |
21.1*40.1*14.5 |
|||||
|
VSE-412W |
400 |
32 |
10/0.4 |
Transparent white |
21.1*12.5*14.5 |
|
|
VSE-413W |
0.08-4.0 |
21.1*17.1*14.5 |
||||
|
VSE-414W |
28-11 |
21.1*21.7*14.5 |
||||
|
VSE-415W |
21.1*26.6*14.5 |
|||||
|
VSE-418W |
21.1*40.1*14.5 |
|||||
|
VSE-412C |
400 |
32 |
10/0.4 |
Transparent gray |
21.1*12.5*14.5 |
|
|
VSE-413C |
0.08-4.0 |
21.1*17.1*14.5 |
||||
|
VSE-415C |
28-11 |
21.1*26.6*14.5 |
Product packaging:
|
 |
 |
 |
 |
 |
Product analysis:
1.High-quality PC materials.
2.Nickel-chromium alloy steel.
3.Tinned copper.
