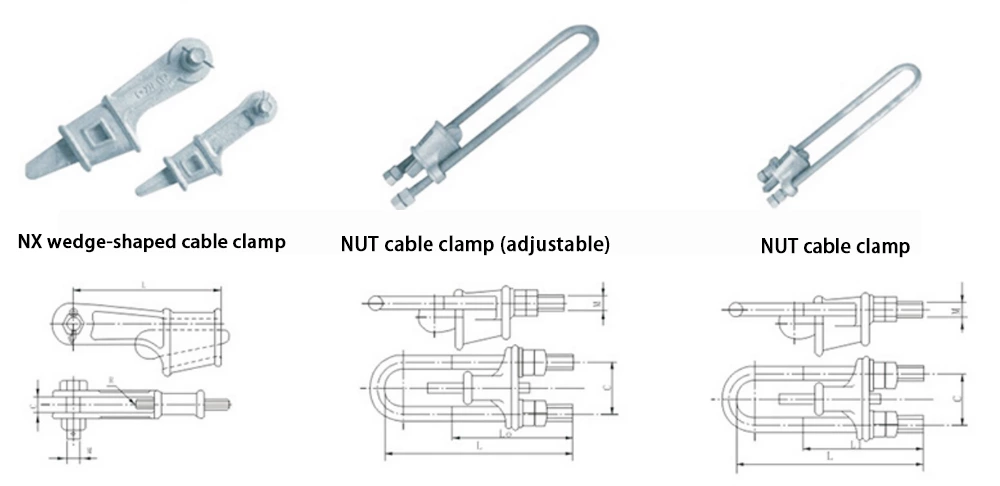

Parameters of UT connectors
| Type | Steel Wire Dia (mm) | Dimensions(mm) | Rated failure load(kN) | Weight (kg) | |||
| C | M | L | L1 | ||||
| NUT-1 | 6.6-7.8 | 56 | 16 | 350 | 200 | 45 | 2.10 |
| NUT-2 | 9.0-11.0 | 62 | 18 | 430 | 250 | 88 | 3.20 |
| NUT-3 | 13.0-14.0 | 74 | 22 | 500 | 300 | 143 | 5.40 |
| NUT-4 | 15.0-16.0 | 82 | 24 | 580 | 300 | 164 | 7.20 |
Parameters of UT connectors
| Type | Steel Wire Dia (mm) | Dimensions(mm) | Rated failure load(kN) | Weight (kg) | |||
| C | M | L | L1 | ||||
| NUT-1 | 6.6-7.8 | 56 | 16 | 290 | 70 | 45 | 1.92 |
| NUT-2 | 9.0-11.0 | 62 | 18 | 290 | 70 | 88 | 2.61 |
| NUT-3 | 13.0-14.0 | 74 | 22 | 290 | 60 | 143 | 4.21 |
| NUT-4 | 15.0-16.0 | 82 | 24 | 340 | 70 | 164 | 7.27 |
Parameters of UT connectors
| Type | Steel Wire Dia (mm) | Dimensions(mm) | Rated failure load(kN) | Weight (kg) | |||
| C | M | L | L1 | ||||
| NX-1 | 6.6-7.8 | 18 | 16 | 150 | 6.0 | 45 | 1.19 |
| NX-2 | 9.0-11.0 | 20 | 18 | 180 | 7.3 | 88 | 1.76 |
| NX-3 | 13.0-14.0 | 24 | 24 | 200 | 7.3 | 143 | 3.20 |
| NX-4 | 15.0-16.0 | 28 | 27 | 220 | 8.0 | 164 | 5.30 |
Note: The body and wedge of the wire clamp are made of malleable cast iron, hot-dip galvanized. The closing pin is a stainless steel casting, and the rest are hot-dip galvanized steel parts.
