Product overview
SLT2 series cable "T" terminals are mainly used for "T" shaped branch line connection in buildings and industrial electrical equipment when the main cable (trunk line) cannot be cut off.
Product advantage
- This allows for branching of main lines without disconnecting cables, providing flexible assembly.
- It provides reliable connections for copper or aluminum conductors, enabling copper-to-aluminum transitions.
- All electrical performance indicators meet IEC international standards, offering excellent conductivity, low resistance loss, and a contact voltage drop of 1.98mV, only two-thirds of the international standard.
- It offers strong heat and impact resistance, capable of withstanding a 120A/mm² short-circuit strength test. The insulation base is made of V0-grade flame-retardant engineering plastic with excellent aging resistance.
- It is easy to install, saving time and costs.

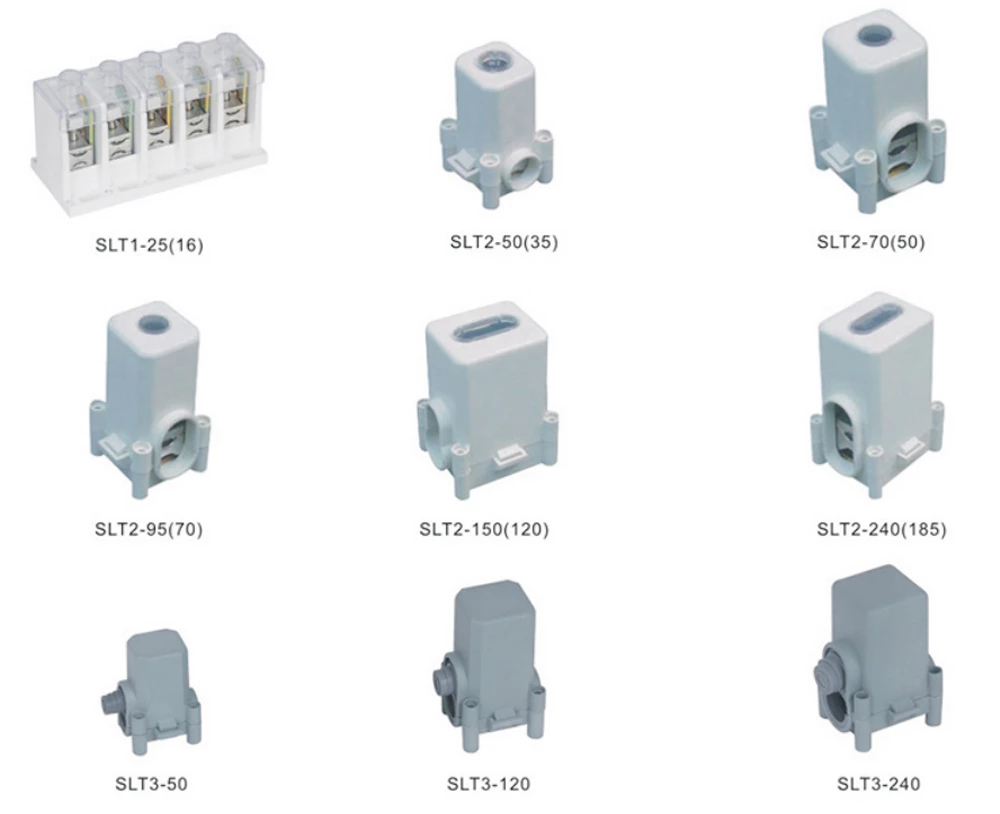

| Type | Voltage/Current | Main Wire (mm²) | Branch Wire (mm²) | Screw Torque (N.m) | Stripping Length |
| SLT2-50(35) | 1000V/150A | 16-50 | 6-35 | M8/12 | 25/25 |
| SLT2-70(50) | 1000V/150A | 16-50 | 6-12 | M8/12 | 30/30 |
| SLT2-95(70) | 1000V/192A | 25-95 | 10-50 | M10/20 | 30/30 |
| SLT2-150(120) | 1000V/192A | 25-70 | 10-35 | M10/20 | 30/30 |
| SLT2-240(185) | 1000V/232A | 25-95 | 10-70 | M10/20 | 30/30 |
| SLT3-50 | 1000V/150A | 150(MAX) | 35(MAX) | M8 | 25/25 |
| SLT3-120 | 1000V/269A | 120(MAX) | 95(MAX) | M10 | 30/30 |
| SLT3-240 | 1000V/400A | 240(MAX) | 150(MAX) | M12 | 40/40 |
| SLT1-25(16) | 1000V/100A | 10-25 | 6-16 | M8 | 25/25 |
