Cable Outer Diameter: 8-26mm Maximum Cross-Section Range: Unarmored Cable: 3 x 16mm², 4 x 16mm² Armored Cable: 3 x 10mm², 4 x 10mm² Dimensions: 185x40x45mm Fill Weight: 150g |
 |
Cable Outer Diameter: 28-50mm Maximum Cross-Section Range: Unarmored Cable: 3 x 95mm², 4 x 95mm² Armored Cable: 3 x 95mm², 4 x 70mm² Dimensions: 400x90x75mm Fill Weight: 1300g |
 |
Cable Outer Diameter: 14-32mm Maximum Cross-Section Range: Unarmored Cable: 3 x 35mm², 4 x 25mm² Armored Cable: 3 x 16mm², 4 x 16mm² Dimensions: 270x55x55mm Fill Weight: 365g |
 |
Cable Outer Diameter: 45-65mm Maximum Cross-Section Range: Unarmored Cable: 3 x 240mm², 4 x 240mm² Armored Cable: 3 x 240mm², 4 x 240mm² Dimensions: 485x220x180mm Fill Weight: 6000g |
 |
Cable Outer Diameter: 23-39mm Maximum Cross-Section Range: Unarmored Cable: 3 x 50mm², 4 x 50mm² Armored Cable: 3 x 50mm², 4 x 35mm² Dimensions: 355x65x60mm Fill Weight: 620g |
 |

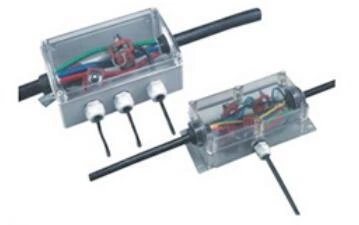

SLSD-8 Tunnel power distribution junction box (Does not cut off the main cable) IP65 |
Note: Outer diameter of cable sheath is the final decision factor for type-choosing, Conductor section is just for reference.

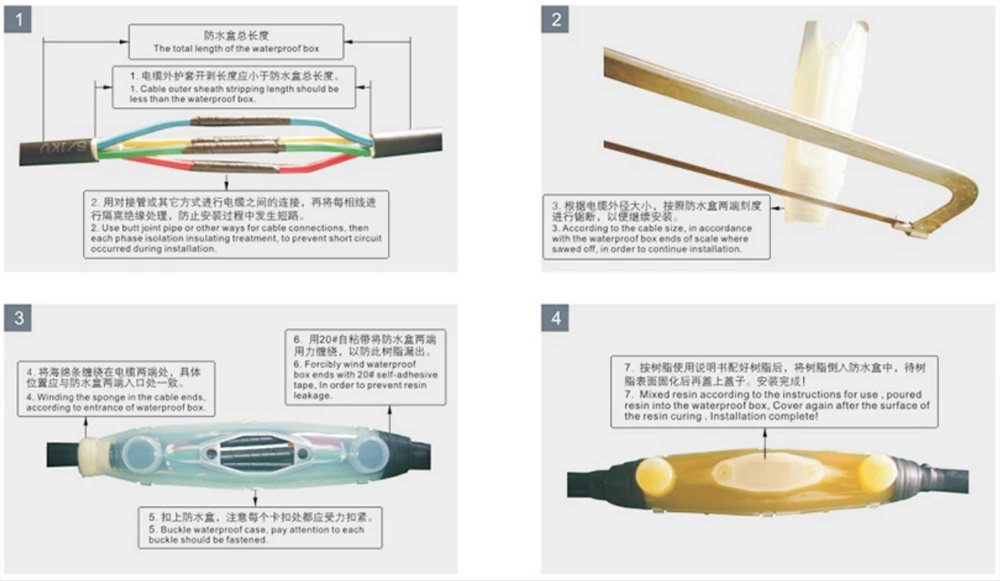

Rubber filling type cable through waterproof box installation
