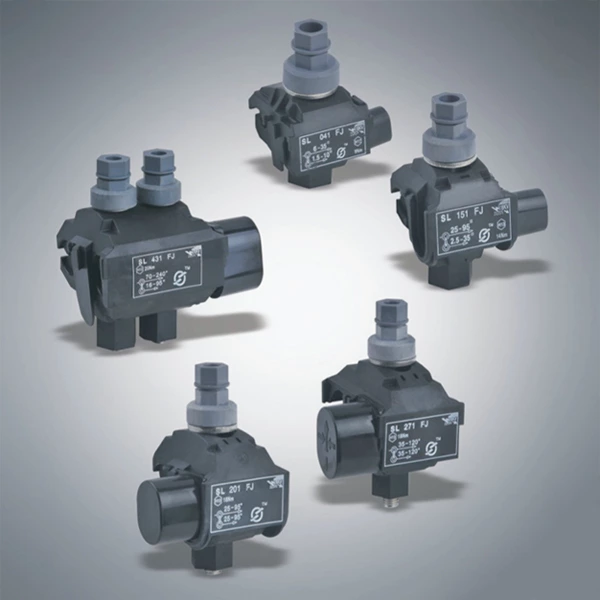

SL1 Series Insulation Piercing Connector (IPC)
SL1 Series Insulation Piercing Connector (IPC)

SL1 Series Insulation Piercing Connector (IPC)

  • Used for branch connection of insulated cable for building distridution system,connection of LV overhead insulated cables, branch connection of LV insulated service- entrance cable,distridution system of streetlight,etc.
  • Main line: Insulated copper or aluminium
  • Branch line: Insulated copper or aluminium
  • Live-line work or power-cut work is allowable
  • Main body of connector is made of high strength insulating material that anti mechanical change or climatic variation.
  • The screw that is equipped with fastening torque nut is anti-corrosion treated,the torque nut enables the installation to be much simple,safe and quick, its constant puncturing pressure guarantees best electrical effect for the cable connection.
  • The connector is featured with property of waterproof, it is able to withstand voltage of 6KV in water without breakdown phenomenon.
  • The waterproof sealing end cap of branch line prevents water from entering into the branch connected conductor.t can be branched on the letf or right side according to the demard.

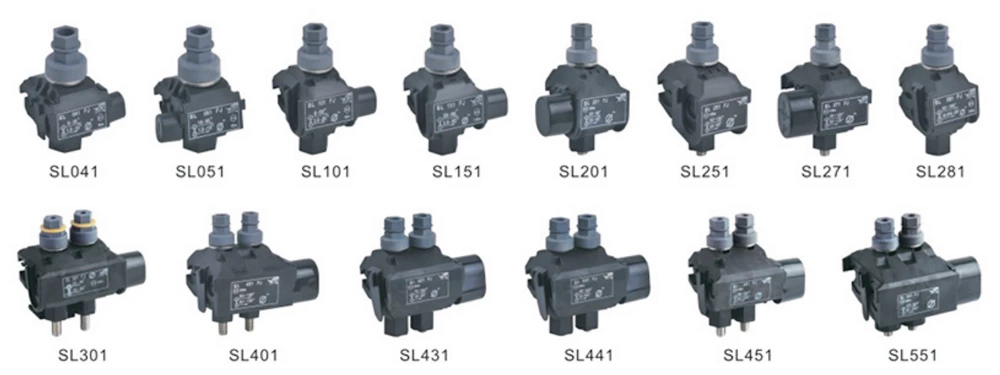

Type Equivalent Type (mm²) Main line (mm²) Branch line (A) Max current Bolt Torque nut
Number H(mm)
SL041FJ TTD041FJ 6-35 1.5-10 86 1×M8 13 F1309
SL051FJ TTD051FJ 16-95 1.5-10 86 1×M8 13 F1309
SL101FJ TTD101FJ 6-50 2.5(6)-35 200 1×M8 13 F1314
SL151FJ TTD151FJ 25-95 2.5(6)-35 200 1×M8 13 F1314
SL201FJ TTD201FJ 35-95 25-95 377 1×M8 13 F1318
SL251FJ TTD251FJ 50-150 25-95 377 1×M8 13 F1318
SL271FJ TTD271FJ 35-120 35-120 377 1×M8 13 F1318
SL281FJ TTD281FJ 50-185 2.5(6)-35 200 1×M8 13 F1314
SL301FJ TTD301FJ 25-95 25-95 377 2×M8 13 F1314
SL401FJ TTD401FJ 50-185 50-150 504 2×M8 13 F1318
SL431FJ TTD431FJ 70-240 16-95 377 2×M10 17 F1720
SL441FJ TTD441FJ 95-240 50-150 504 2×M10 17 F1725
SL451FJ TTD451FJ 95-240 95-240 530 2×M10 17 F1725
SL551FJ TTD551FJ 120-400 95-240 679 2×M10 17 F1737
