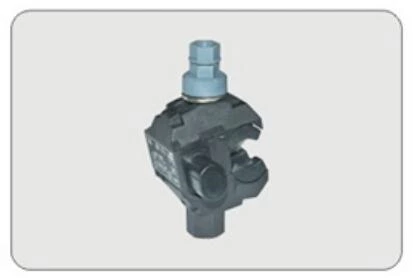

- Used for branch connection of insulated cable for building distridution system,connection of LV overhead insulated cables, branch connection of LV insulated service- entrance cable,distridution system of streetlight,etc.
- Main line: Insulated copper or aluminium
- Branch line: Insulated copper or aluminium
- Live-line work or power-cut work is allowable
- Main body of connector is made of high strength insulating material that anti mechanical change or climatic variation.
- The screw that is equipped with fastening torque nut is anti-corrosion treated,the torque nut enables the installation to be much simple,safe and quick, its constant puncturing pressure guarantees best electrical effect for the cable connection.
- The connector is featured with property of waterproof, it is able to withstand voltage of 6KV in water without breakdown phenomenon.
- The waterproof sealing end cap of branch line prevents water from entering into the branch connected conductor.t can be branched on the letf or right side according to the demard.

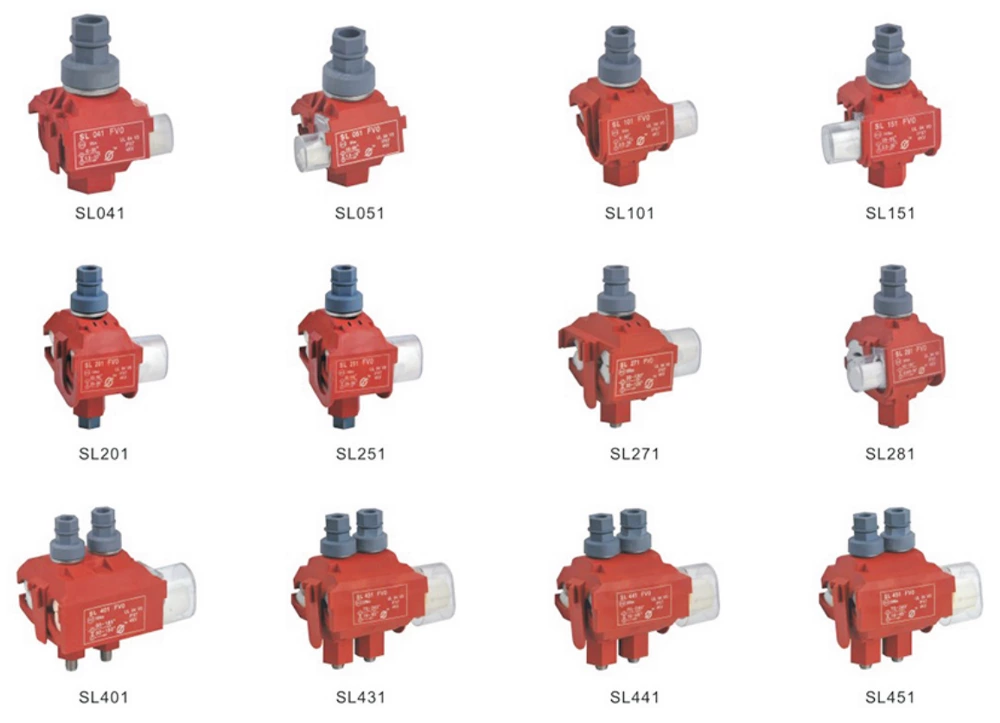

1kV SL1 Fire-retardant IPC Selection Table
| Type | Equivalent Type | (mm²) Main line | (mm²) Branch line | (A) Max current | Bolt | Torque nut | |
| Number | H(mm) | ||||||
| SL041FV0 | TTD041FV0 | 6-35 | 1.5-10 | 86 | 1×M8 | 13 | F1309 |
| SL051FV0 | TTD051FV0 | 16-95 | 1.5-10 | 86 | 1×M8 | 13 | F1309 |
| SL101FV0 | TTD101FV0 | 6-50 | 2.5(6)-35 | 200 | 1×M8 | 13 | F1309 |
| SL151FV0 | TTD151FV0 | 25-95 | 2.5(6)-35 | 200 | 1×M8 | 13 | F1314 |
| SL201FV0 | TTD201FV0 | 35-95 | 25-95 | 377 | 1×M8 | 13 | F1318 |
| SL251FV0 | TTD251FV0 | 50-150 | 25-95 | 377 | 1×M8 | 13 | F1314 |
| SL271FV0 | TTD271FV0 | 35-120 | 35-120 | 377 | 1×M8 | 13 | F1314 |
| SL281FV0 | TTD281FV0 | 50-185 | 2.5(6)-35 | 200 | 1×M8 | 13 | F1314 |
| SL301FV0 | TTD301FV0 | 25-95 | 25-95 | 377 | 2×M8 | 13 | F1314 |
| SL401FV0 | TTD401FV0 | 50-185 | 50-150 | 504 | 2×M8 | 13 | F1318 |
| SL431FV0 | TTD431FV0 | 70-240 | 16-95 | 377 | 2×M10 | 17 | F1720 |
| SL441FV0 | TTD441FV0 | 95-240 | 50-150 | 504 | 2×M10 | 17 | F1725 |
| SL451FV0 | TTD451FV0 | 95-240 | 95-240 | 530 | 2×M10 | 17 | F1725 |
| SL551FV0 | TTD551FV0 | 120-400 | 95-240 | 679 | 2×M10 | 17 | F1737 |

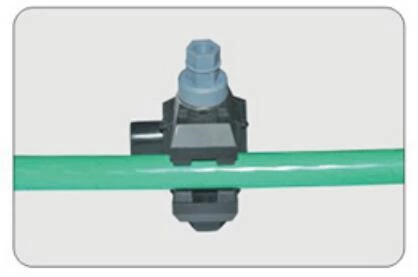

Insta llation of1kV SL1 Fire-retardant IPC
 |
 |
 |

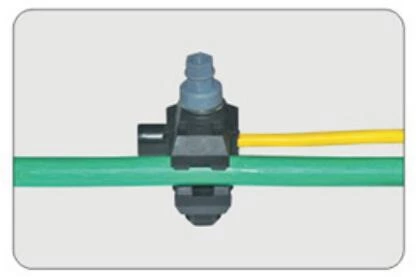

| Unscrew the connector firstly. | Placed the main line in the main trough,keep it with blade-foot in line. Note: Whether the scope of the wire diameter corresponding of the connector. | Then place the branch line into the branch trough. Notes Ibid. |
 |
 |
 |

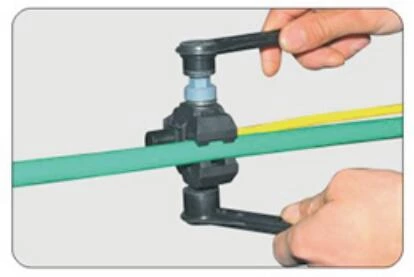

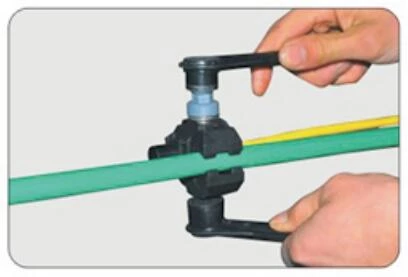

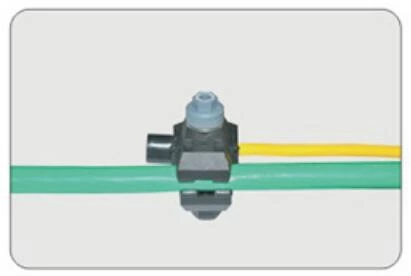

| Tighten it with a socket wrench.Disable open-end wrench. | The nut will be twisted off when tighten to a certain constant torque. As shown. | After installation results. |
