Application

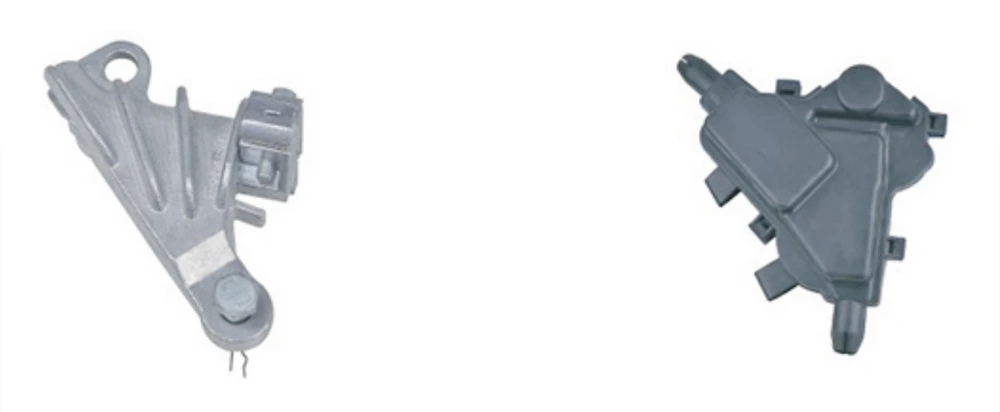

NXL Series strain clamp is suitable for distribution wire up to 10kV,firstly,fix the aerial insulation aluminum conductor or naked aluminum conductor on the rotate angle or insulator of terminal strain pole, and then fix and tight the aerial conductor.
The inner wedge is made of high strength aluminum through heat treatment, the outside shield was made from good climate resistance insulting material. This product was belonging to power-saving anchor clamp.
Structure Feature
1. Choose the unmagnetic character high-intersity oxidate-resistance aluminum alloy, No waste electric energy.
2. Wedged-Locked structure easy-installation.
3. An arc embraces the most part, conductor cannot change.Large grip strength.
4. No waste electric energy.
Insulation Cover Performance Feature
1.Withstand voltage:≥18kV keep voltage one minute not breakdown
2.Insulation resistance: >10x10¹⁴Ω
3. Environments temperature: -30℃~90℃
| Catalogue No. | Applicable cable cross section(mm) | Length L1 (mm) | Grip strength(kN) | Failure load (kN) | Insulation cover type |
| NXL-1 | 50 | 245 | 5.16 | 14.50 | NXL-95 |
| 70 | 7.12 | ||||
| 95 | 9.40 | ||||
| NXL-2 | 120 | 255 | 12.70 | 23.40 | NXL-150 |
| 150 | 15.20 | ||||
| NXL-3 | 185 | 300 | 18.50 | 36.30 | NXL-240 |
| 240 | 23.60 | ||||
| NXL-4 | Ф22.5~27.5 | 320 | 55 | 61 | NXL-4 |
| Catalogue No. | Applicable cable cross section(mm) | Length L1 (mm) | Grip strength(kN) | Failure load (kN) | Insulation cover type | |
| NXL-2 | 10kV | 35 | No stripping insulation layer | 3.40 | 14.50 | Used to 10kV insulated aluminum wire |
| 50 | 4.60 | |||||
| 70 | 6.70 | |||||
| NXL-3 | 10kV | 95 | 8.90 | 23.40 | ||
| 120 | 11.30 | |||||
| 150 | 13.60 | |||||
| NXL-4 | 10kV | 185 | 17.30 | 36.30 | ||
| 240 | 22.50 | |||||
