| Application Wedge-shaped wire clamps are suitable for non-load-bearing connection or branching between overhead insulated aluminum stranded wires or steel-core aluminum stranded wires in overhead power distribution lines. The insulation cover and wire clamp are used together to play an insulating and protective role. |
Structure feature
●Non-magnetic material, no power loss ●Elastic wedge clamping for reliable connection ●Suitable for various conductor combinations, highly adaptable |
Application of wire clamp
A wedge-type wire clamp consists of a C-shaped wedge shell and a wedge block (as shown in the figure below). The size of the groove formed between the C-shaped wedge shell and the wedge block is directly related to the diameter of the conductor to be installed. The groove size and shape are determined by the designer and manufacturer. Therefore, when selecting a wedge-type wire clamp, the user only needs to provide the model and cross-sectional dimensions of the main conductor and branch conductor. See Tables 1 and 2 for wedge-type wire clamp selection.
Application of wire clamp

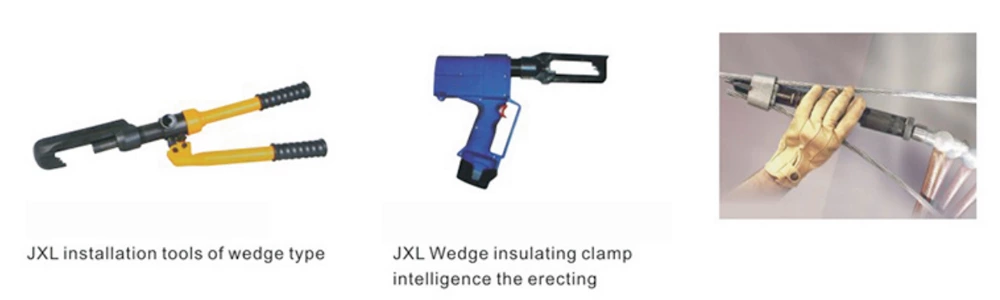

Figure 1. Wedge-type cable clamp housings come in four sizes: 1, 2, 3, and 4. Installation tools are selected based on the size of the clamp housing. For clamps with size 1 and 2 housings, use a small installation tool; for clamps with size 3 and 4 housings, use a large installation tool.
Figure 2. Our company's intelligent installation tool offers numerous advantages, including ease of operation, reliability, and excellent installation results. It is available for user selection.

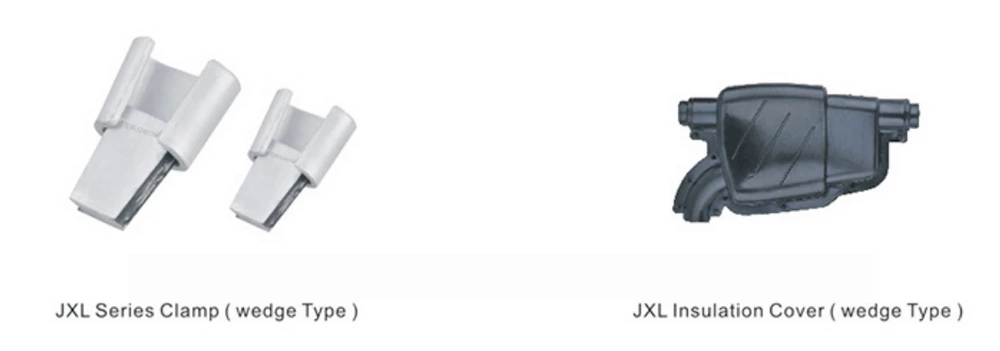

Wedge-shaped wire clamp and silicone rubber insulation cover
| Specifications | Applicable conductor nominal cross-section | |
| Main conductor | Branch conductor | |
| JXL-1, Size 1 housing | 95~ 50 | 16~95 |
| 120~50 | 16~120 | |
| JXL-2, Size 2 housing | 150 | 16~150 |
| JXL-3, Size 3 housing | 185 | 16~185 |
| JXL-4, Size 4 housing | 240 | 16~240 |
