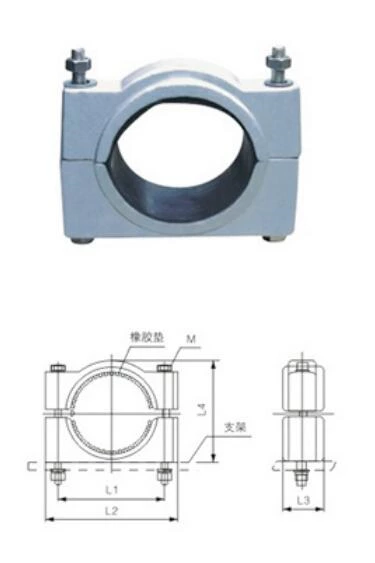

JGW High voltage cable cleat
 |
Application
The product is made of high-strength anti-corrosive aluminum alloy to secure the placement of cables. Its fixture structure is anchored by bolts, The retaining clip is compact, reasonable in conformation. easy and flexible for installation and does not do harm to the cable.
Specification
| Type |
Ф Applicable outside diameter of cable |
L1 |
L2 |
L3 |
L4 |
M |
| JGW-1 |
75-84 |
120 |
150 |
80 |
114 |
2-M12 |
| JGW-2 |
85-94 |
130 |
160 |
80 |
124 |
2-M14 |
| JGW-3 |
95-104 |
140 |
175 |
80 |
138 |
2-M14 |
| JGW-4 |
105-114 |
150 |
185 |
80 |
150 |
2-M14 |
| JGW-5 |
115-124 |
1660 |
195 |
90 |
160 |
2-M14 |
| JGW-6 |
125-134 |
175 |
215 |
90 |
175 |
2-M16 |
| JGW-7 |
135-146 |
190 |
230 |
100 |
195 |
2-M16 |
|

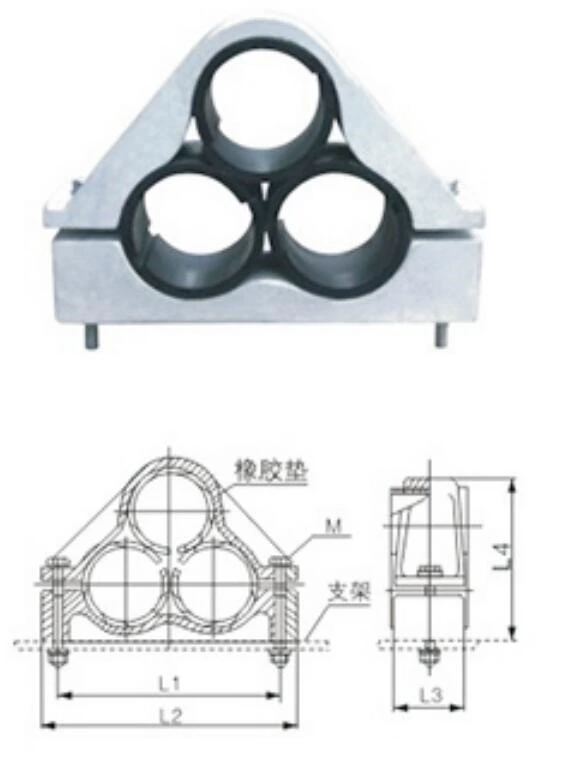

JGP High voltage three cores cable cleat
 |
Application
The product is made of high-strength anti-corrosive aluminum alloy to secure the placement of 3 cables. Its fixture structure is anchored by bolts and spring. The retaining clip is compact. reasonable in conformation, easy for installation and does not do harm to the cable.
Specification
| Type |
Ф Applicable outside diameter of cable |
L1 |
L2 |
L3 |
L4 |
M |
| JGW-1 |
45-55 |
150 |
180 |
65 |
135 |
2-M12 |
| JGW-2 |
55-68 |
186 |
214 |
70 |
156 |
2-M12 |
| JGW-3 |
68-80 |
224 |
164 |
75 |
186 |
2-M14 |
| JGW-4 |
80-90 |
245 |
278 |
80 |
205 |
2-M14 |
| JGW-5 |
90-100 |
280 |
322 |
100 |
235 |
2-M16 |
| JGW-6 |
100-114 |
290 |
332 |
100 |
252 |
2-M16 |
|

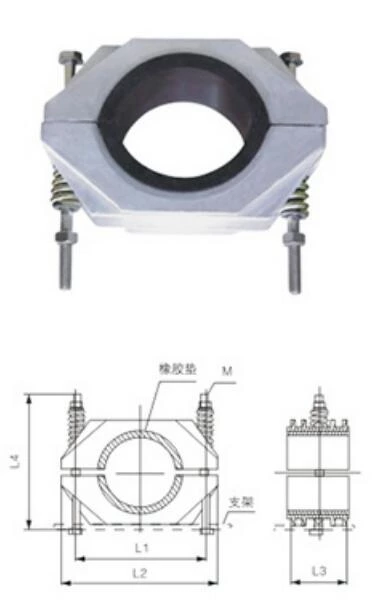

JGH High voltage cable cleat
 |
Application
The product is made of high-strength anti-corrosive aluminum alloy to secure the placement of cables. Its fixture structure is anchored by bolts, The retaining clip is compact, reasonable in conformation. easy and flexible for installation and does not do harm to the cable.
Specification
| Type |
Ф Applicable outside diameter of cable |
L1 |
L2 |
L3 |
L4 |
M |
| JGH-01 |
55-65 |
130 |
160 |
75 |
160 |
2-M12 |
| JGH-0 |
65-80 |
130 |
160 |
75 |
160 |
2-M12 |
| JGH-1 |
80-100 |
150 |
182 |
80 |
180 |
2-M12 |
| JGH-2 |
100-120 |
190 |
230 |
80 |
200 |
2-M12 |
| JGH-3 |
120-136 |
180 |
230 |
80 |
220 |
2-M12 |
|

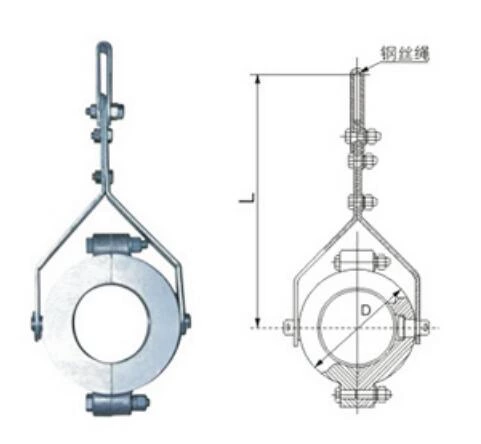

JGX High voltage henging cable cleat
 |
Application
The product is made of high-strength anti-corrosive aluminum alloy to secure the placement of cables. Its fixture structure is anchored by bolts, The retaining clip is compact, reasonable in conformation. easy and flexible for installation and does not do harm to the cable.
Specification
| Type |
Ф Applicable outside diameter of cable |
L |
D |
| JGX-1 |
50-60 |
280 |
98 |
| JGX-2 |
60-70 |
290 |
112 |
| JGX-3 |
70-80 |
306 |
126 |
| JGX-4 |
80-90 |
320 |
140 |
| JGX-5 |
90-100 |
336 |
156 |
|
