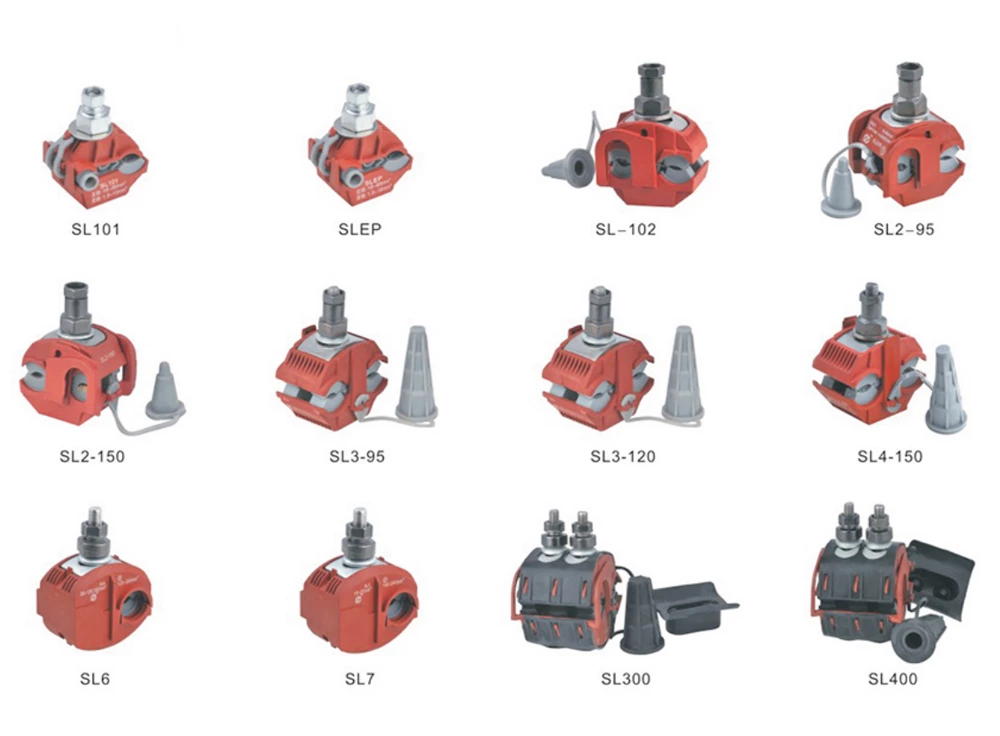

Selection Table for fire-retardant IPC
| Type | Equivalent Type | (mm²) Main Line Section | (mm²) Branch Section | (A) Norminal Current | (mm) Dimensions | (g) Weight | (mm) Piercing Depth | Bolt Quantity (pcs) |
| SL756 | JJC888 | 0.75-6 | 0.75-6 | 41 | 21x27x23 | 10 | 1-1.5 | 1 |
| SL101 | JJC-1 | 1.5-25 | 1.5-10 | 55 | 27x41x62 | 55 | 1.5-2 | 1 |
| SLEP | JJC-2 | 16-95 | 1.5-10 | 55 | 27x41x62 | 55 | 1-2 | 1 |
| SL102 | JJC-3(A) | 6-50 | 4-25 | 157 | 42x45x62 | 110 | 2.5-3.5 | 1 |
| SL2-95 | JJC-3 | 16-95 | 4-35 (50) | 157 | 46x52x87 | 160 | 2.5-3.5 | 1 |
| SL2-150 | JJC-4 | 50-150 | 6-35 (50) | 157 | 46x52x87 | 162 | 2.5-3.5 | 1 |
| SL3-95 | JJC-5 | 25-95 | 25-95 | 214 | 50x61x100 | 198 | 3-4 | 1 |
| SL3-120 | JJC-5-1 | 16-120 | 16-120 | 214 | 50x61x100 | 198 | 3-4 | 1 |
| SL4-150 | JJC-6 | (35)50-150 | (35) 50-150 | 316 | 50x61x100 | 280 | 3-4 | 1 |
| SL6 | JJC-7 | 120-240 | 25-120 | 276 | 52x68x100 | 360 | 3-4 | 1 |
| SL7 | JJC-7-1 | 150-240 | 10-25 | 102 | 52x68x100 | 336 | 3-4 | 1 |
| SL300 | 300 | 25-95 95-240 | 425 | 83x130x 130 | 1040 | 4.5-5.5 | 2 | |
| SL400 | 95-400 | 35-300 | 425 | 83x130x130 | 1050 | 5-6 | 2 |
Please phone us for special specification and type.
