1kV insulation piercing grounding connectors
- It is suitable for 1kV overhead insulated wire grounding protection and temporary electrical inspection.

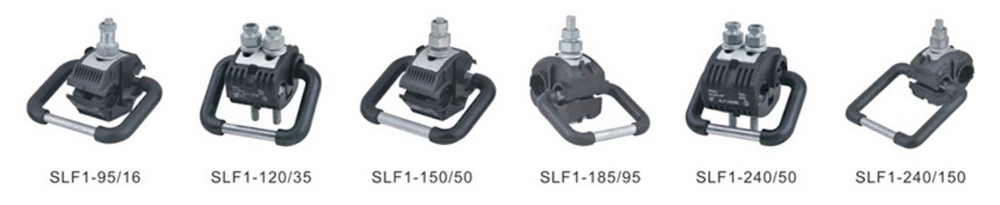

| Type | Equivalent Type | Suitable voltage (kV) | Suitable wire (mm²) | Dimensions (mm) | (A) Norminal Current | Bolt Quantity (pcs) | (mm) Piercing Depth | ||
| A | B | H | |||||||
| SLF1-95/16 | JJCD1-16-95 | 1 | 16-95 | 120 | 103 | 80 | 214 | 1 | 3-4 |
| SLF1-120/35 | JJCD1-35-120 | 1 | 35-120 | 120 | 103 | 80 | 316 | 2 | 3-4 |
| SLF1-150/50 | JJCD1-50-150 | 1 | 50-150 | 120 | 103 | 80 | 316 | 1 | 3-4 |
| SLF1-185/95 | JJCD1-95-185 | 1 | 95-185 | 125 | 103 | 110 | 276 | 1 | 3-4 |
| SLF1-240/150 | JJCD1-150-240 | 1 | 150-240 | 125 | 103 | 110 | 276 | 1 | 3-4 |
