10kV insulation piercing grounding connectors
- It is suitable for 10kV overhead insulated wire grounding protection and temporary electrical inspection.

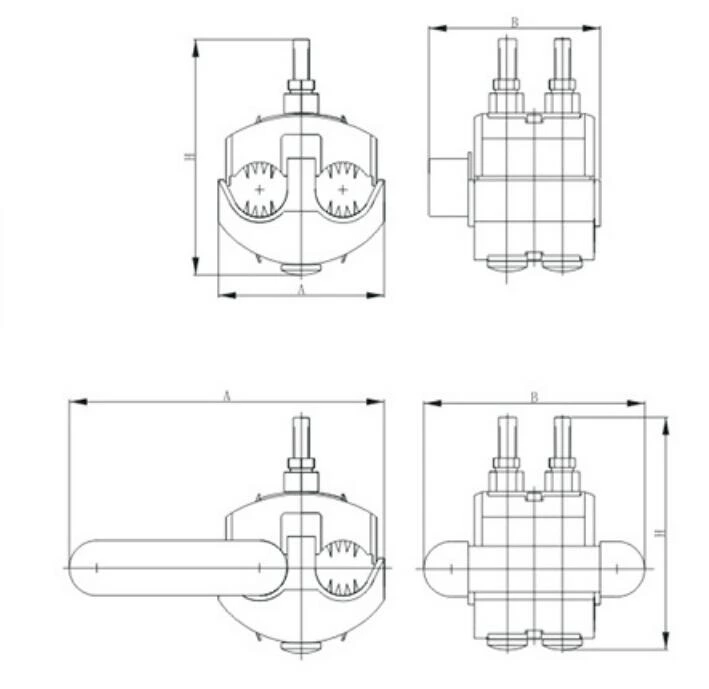

| Type | Equivalent Type | Suitable voltage (kV) | Suitable wire (mm²) | Dimensions (mm) | (A) Norminal Current | Bolt Quantity (pcs) | (mm) Piercing Depth | ||
| A | B | H | |||||||

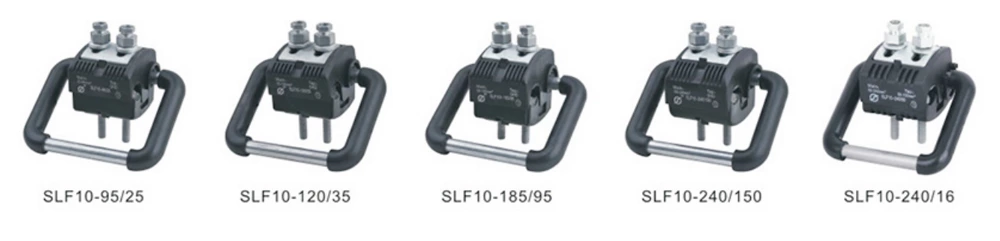

| SLF10-95/25 | JJCD10-95-25 | 10 | 25-95 | 144.5 | 140 | 92.5 | 257 | 2 | 4-5 |
| SLF10-120/35 | JJCD10-120-35 | 10 | 35-120 | 148 | 120 | 86 | 316 | 2 | 4-5 |
| SLF10-180/95 | JJCD10-95-185 | 10 | 95-185 | 152 | 140 | 112.5 | 476 | 2 | 4-5 |
| SLF10-240/150 | JJCD10-150-240 | 10 | 150-240 | 160 | 140 | 112.5 | 476 | 2 | 4-5 |
| SLF10-240/16 | JJCD10-16-240 | 10 | 16-240 | 148 | 120 | 108 | 476 | 2 | 4-5 |
 |
 |

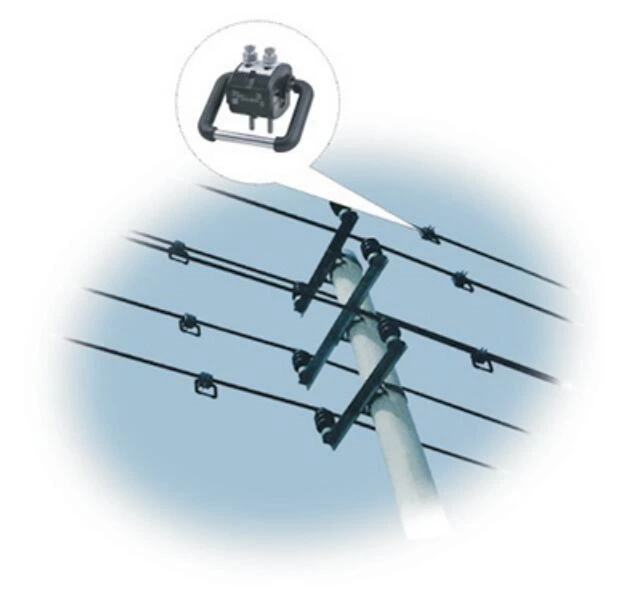

| SLF type insulation piercing grounding connectors application legend |
