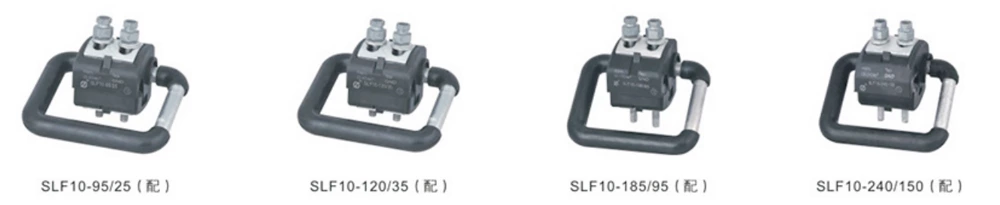

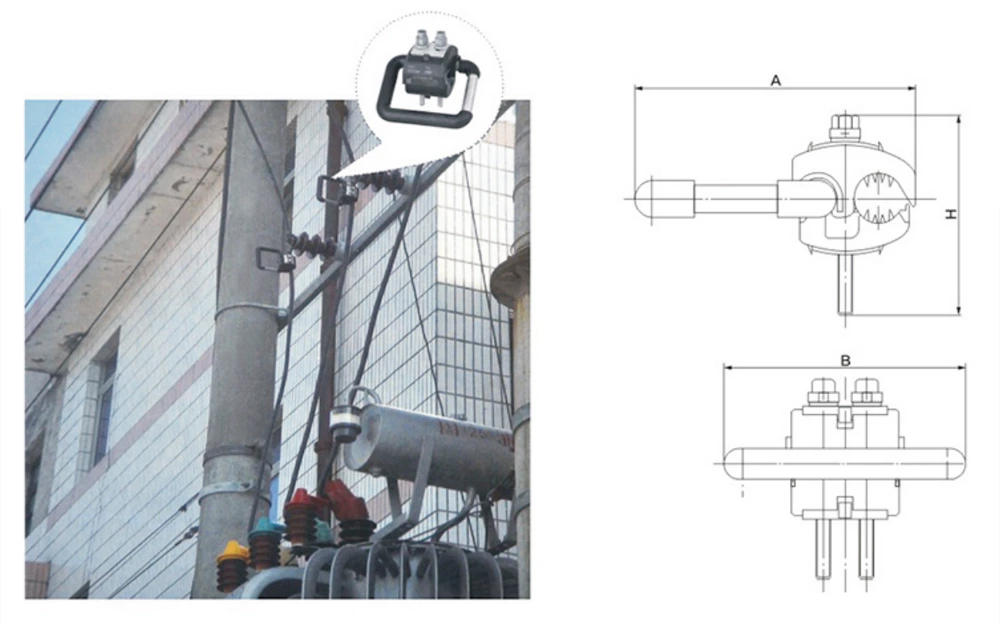

10kV distribution line grounding connectors
Applicable to earthing protection for 10kV distribution line.
| Type | Equivalent Type | Suitable voltage (kV) | Suitable wire (mm²) | Dimensions (mm) | (A) Norminal Current | Bolt Quantity (pcs) | (mm) Piercing Depth | ||
| A | B | H | |||||||
| SLF10-95/25(match) | JJCD10-95-25(match) | 10 | 25-95 | 148.5 | 140 | 98 | 257 | 2 | 4-5 |
| SLF10-120/35(match) | JJCD10-120-35(match) | 10 | 35-120 | 154 | 138 | 110 | 276 | 2 | 3-4 |
| SLF10-185/95(match) | JJCD10-95- 185(match) | 10 | 95-185 | 152 | 140 | 113 | 476 | 2 | 4-5 |
| SLF10-240/150(match) | JJCD10-150-240(match) | 10 | 150-240 | 160 | 140 | 113 | 476 | 2 | 4-5 |
