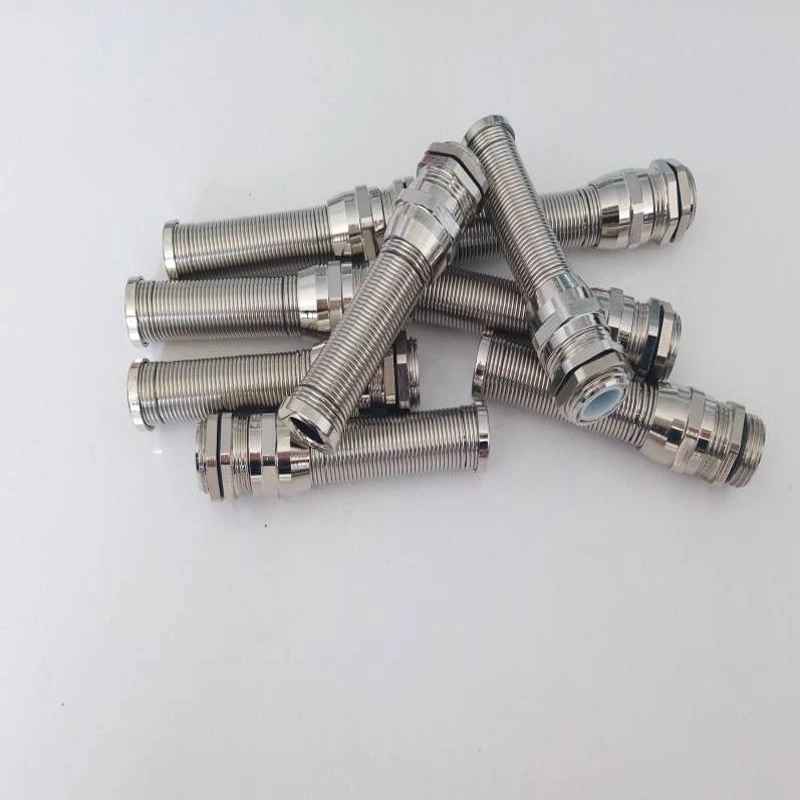

Brass Spiral Cable Gland PG/METRIC Type
Technical Information:
- Model：PG/METRIC Type
- Material: Brass coated by nickel.
- Size: PG7 to PG21, M12 to M27.
- Color: Metallic Color.
- Protection Level: IP68.
- Weather Strip: NBR, EPDM.
- Working temperature：-40℃ to 100℃，short time to 120℃.
- Packing:100pcs/bag,50pcs/bag,20pcs/bag,5pcs/bag.
- Port: Shanghai/Ningbo.
Description:
- Thread: Metric.
- Materials:Part A.C.F is made of UL approved nylon PA66(fire rating UL94V-2),part B.D butadiene rubber （NBR）or EPDM.
- Protection Degree:IP68(within fasteing range,O type was her will be used in tightening part).
- Working Temperature:-40℃ to 100℃ in static state,instantaneous heat resistance up to 120℃.
- Product Features:Wide rang for fastening cables,strong tensile strength,waterproof,dustproof,resistant to acid and alkali,alcohol,grease and general solvents
Specifications:
|
Model |
Cable Range() |
Thread O.D AG()mm |
Thread Length GL(mm) |
Spanner Size(mm) |
|
PG7 |
3-6.5 |
12.5 |
6 |
14 |
|
PG9 |
4-8 |
15.2 |
7 |
17 |
|
PG11 |
5-10 |
18.6 |
7.5 |
20 |
|
PG13.5 |
6-12 |
20.4 |
7.5 |
22 |
|
PG16 |
10-14 |
22.5 |
7.5 |
24 |
|
PG21 |
13-18 |
28.3 |
8 |
30 |
|
M12X1.5 |
3-6.5 |
12 |
6 |
14 |
|
M16X1.5 |
4-8 |
16 |
7 |
17 |
|
M18X1.5 |
5-10 |
18 |
7.5 |
20 |
|
M20X1.5 |
6-12 |
20 |
7.5 |
22 |
|
M22X1.5 |
10-14 |
22 |
7.5 |
24 |
|
M25X1.5 |
13-18 |
25 |
8 |
30 |
|
M27X1.5 |
13-18 |
27 |
8 |
30 |
