Designed for branching of foreign single-core cables Maximum cross-sectional area: Main circuit: 2.5-35mm² Branch circuit: 1.5-10mm² Dimensions: 70x45x28mm Filling weight: 30g |
 |
Maximum Cable Outer Diameter: Main Circuit: 35mm Branch Circuit: 25mm Maximum Cross-Section Range: Main Circuit: 4 x 35-95mm² Branch Circuit: 4 x 6-25mm² Product Dimensions: 400 x 125 x 100mm Fill Weight: 2500g |
 |
Maximum Cable Outer Diameter: Main Circuit: 15mm Branch Circuit: 15mm Maximum Cross-Section Range: Main Circuit: 4 x 1.5-6mm² Branch Circuit: 4 x 1.5-4mm² Product Dimensions: 175 x 75 x 40mm Fill Weight: 140g |
 |
Maximum Cable Outer Diameter: Main Circuit: 26mm Branch Circuit: 22mm Maximum Cross-Section Range: Main Circuit: 4 x 6-10mm² Branch Circuit: 4 x 4-10mm² Product Dimensions: 198 x 140 x 116mm Fill Weight: 650g |
 |
Maximum Cable Outer Diameter: Main Circuit: 29mm Branch Circuit: 22mm Maximum Cross-Section Range: Main Circuit: 4 x 6-10mm² Branch Circuit: 4 x 4-10mm² Product Dimensions: 175 x 110 x 76mm Fill Weight: 500g |
 |
Maximum Cable Outer Diameter: Main Circuit: 29mm Branch Circuit: 22mm Maximum Cross-Section Range: Main Circuit: 4 x 16-25mm² Branch Circuit: 4 x 4-16mm² Product Dimensions: 178 x 125 x 96mm Fill Weight: 700g |
 |
Maximum Cable Outer Diameter: Main Circuit: 29mm Branch Circuit: 22mm Maximum Cross-Section Range: Main Circuit: 4 x 16-25mm² Branch Circuit: 4 x 6-16mm² Product Dimensions: 300 x 110 x 76mm Fill Weight: 1000g |
 |
Maximum Cable Outer Diameter: Main Circuit: 55mm Branch Circuit: 36mm Maximum Cross-Section Range: Main Circuit: 4 x 35-150mm² Branch Circuit: 4 x 6-70mm² Product Dimensions: 295 x 175 x 130mm Fill Weight: 2000g |
Note: Outer diameter of cable sheath is the final decision factor for type-choosing, Conductor section is just for reference.

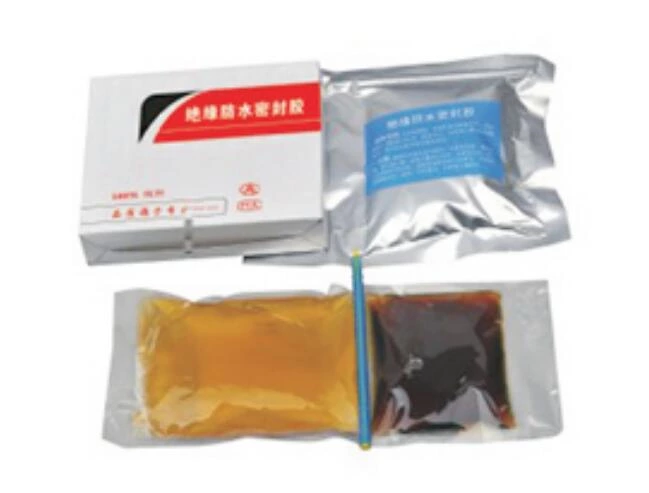

Appendix : Instructions for Insulated waterproof sealant
| The resin used (must be strictly observed, caused by violations of the following HOW-to We are not responsible for any consequences) 1. Component A and B component resin spacers between the open and full rubbing and 2-3 minutes, until uniform. 2. Immediately poured into the resin mixture into the branch box such as the delay time is too long to make resin thick and even easier to cure. 3. Should avoid skin and eye direct contact with the resin. |  |
