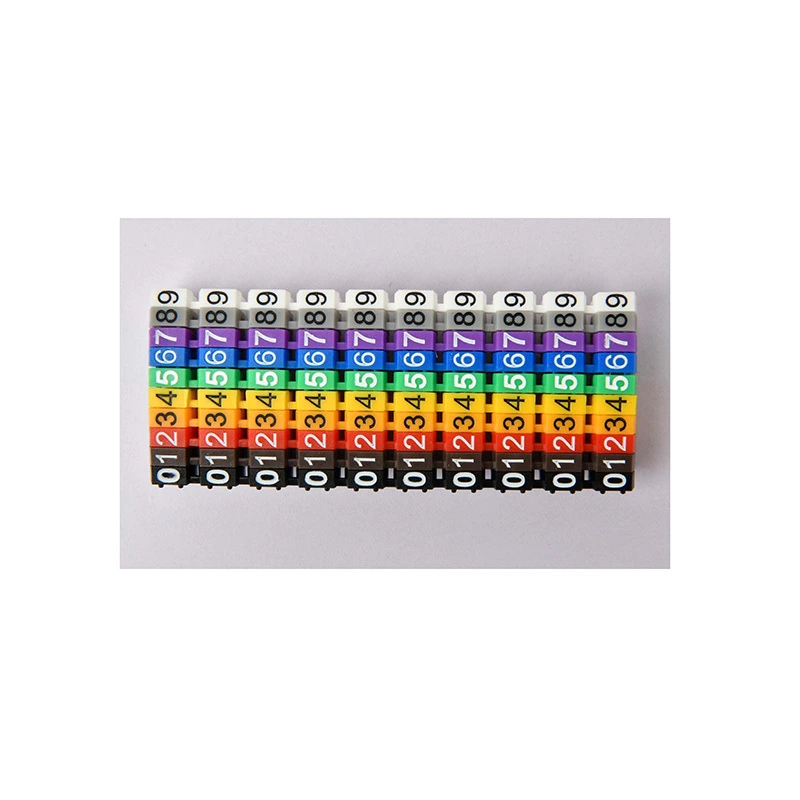

M Type Color Coded Cable Marker
Product features: It was made of UL 94-2 qualified POM material. It adopts double convex and double concave design, which prevents the cable marker to turn over when using in combination. Colour
Product features:
- It was made of UL 94-2 qualified POM material.
- It adopts double convex and double concave design, which prevents the cable marker to turn over when using in combination.
- Colour:Adopts International standard color code.
Available Size:
| ITEM(mm²) | BundleΦ Min.mm | BundleΦ Max.mm | Width (w)mm | Height (H)mm | Length (L)mm | Suitable Wire | Quantity/pcs | ||
| SQ | AWG | ||||||||
| M-0 | 1.5 | 2.0 | 3.0 | 4.8 | 6.8 | 2.9 | 0.5-1.5² | 20-18 | 15 pcs |
| M-1 | 2 | 2.5 | 3.5 | 5.1 | 7 | 3 | 0.75-2.0² | 18-16 | 10 pcs |
| M-2 | 2.5 | 3.0 | 4.0 | 6.8 | 9 | 3.6 | 1.5-2.5² | 16-14 | 10 pcs |
| M-3 | 4 | 4.0 | 5.3 | 8.0 | 10 | 3.5 | 4.0-6.0² | 12-10 | 10 pcs |
| M-4 | 6 | 6.0 | 7.5 | 9 | 12 | 3.5 | 8.0-10.0² | 8-6 | 10 pcs |
