High quality rotary encoder
Feature and advantage
1. Magnetic rotary encoder
2. Long life, strong anti-interference capacity, anti-vibration
For the angle-measuring and angular velocity measurement, Incremental encoder is more economic and more simple than absolute encoder
Application
Rotary encoder is the device which measure the rotate speed and improve the speed quickly with PWM technology. The angle displacement of the angle encoder is increased or decreased by transforming the timing sequence and phase position relation of the angle encoder with two inner Photosensitive acceptor tube.
Dimensions
 |
 |
Technical Data
|
Electrical parameter |
Mechanical parameters |
||
|
Resolution ratio |
10-3600P/R |
Starting torque |
2x103N.m (+25℃ |
|
Supply voltage |
DC5V~24V, DC5V |
Axis permissible load |
Axial direction |
|
Output voltage(VH) |
≥3.5, ≥Vcc~2.5v |
Rotational inertia |
4X107 Kgm2 |
|
Output voltage(VL) |
≤0.5V, ≤1.0V |
Maximum Revolution |
5000r/min |
|
Current Consumption |
≤100mA |
Operation Temperature |
-20℃ ~ +70℃ |
|
Output phase |
A,B,Z, |
Storage temperature |
-20℃ ~ +80℃ |
|
Response frequency |
0~100KHz |
Protection class |
IP65 |
|
Rising/fall time |
24V﹤1us |
Anti-vibration |
50m/S2 |
|
5v drive≤0.1us |
Impact resistance |
960m/S2 |
|
Application field
|
Vector machine and servo motor |
Elevator Area |
Production machinery |
|
Industrial electric control production line ,for example factory automatic production line |

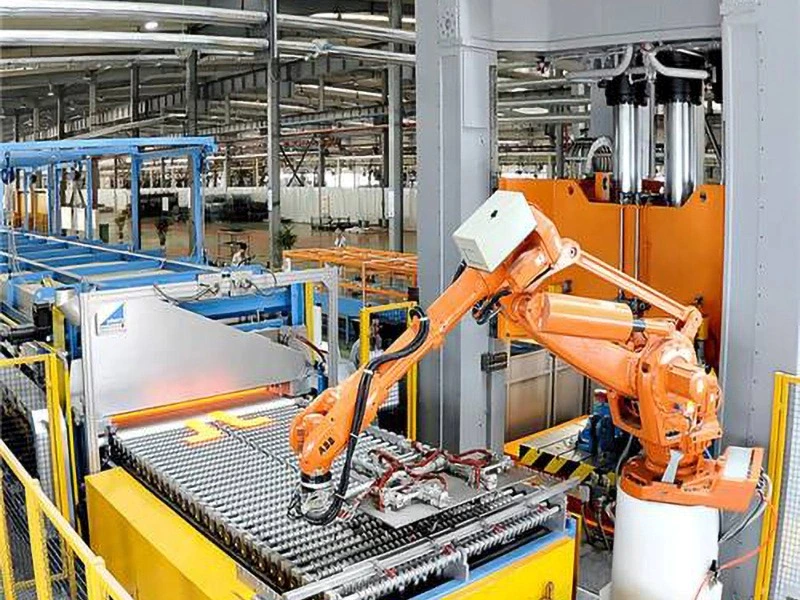

Automated assembly line and industrial robot |
Elevator Area |
Model specification
|
ESM |
38 |
06 |
G |
C |
/ |
PULSE |
B |
M |
□ |
- |
□ |
|
① |
② |
③ |
④ |
⑤ |
⑥ |
⑦ |
⑧ |
⑨ |
⑩ |
||
|
1. Model (E: incremental type, S: Solid, M: Magnetic) |
2. Outer diameter: 38mm |
||||||||||
|
3. Diameter of axis: 6mm |
4. Wiring method (G: Cable side out, E: Cable rear out) |
||||||||||
|
5. Signal output mode (C: open-collector output ,E: voltage output, F: push-pull output, L: drive output) |
|||||||||||
|
8. M: zero signal |
7. Output type: B=A,B phase |
||||||||||
|
10. Length of cable (standard: 2M) |
9. Zero signal good: blank=1T |
||||||||||
