Technical Information:

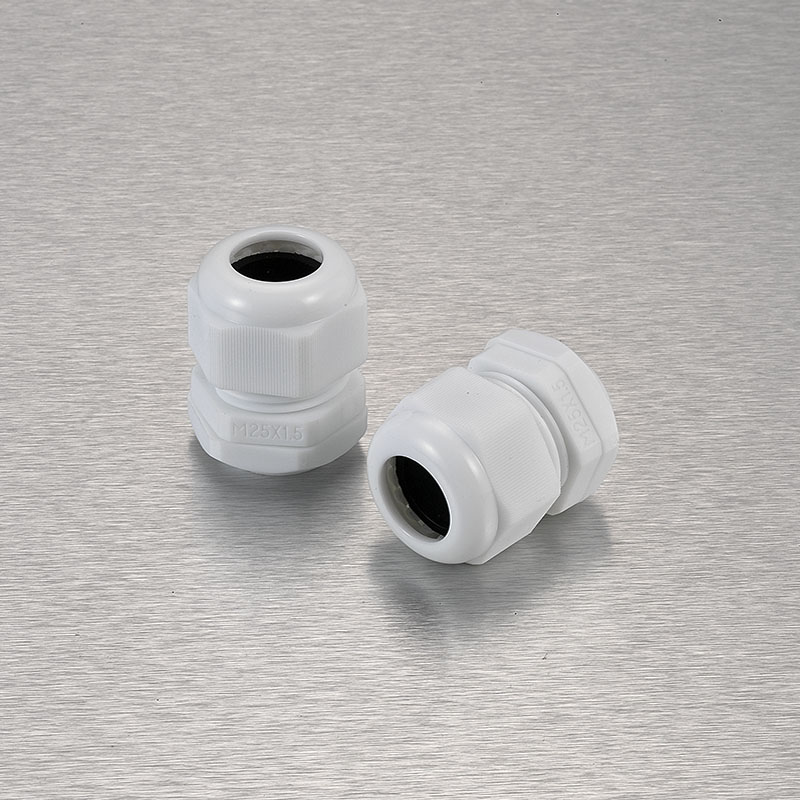

l Model: METRIC Type
l Material: PA6/PP.
l Size: M12 to M66.
l Color:White/Grey/Black/Red or OEM Color.
l Protection Level: IP68.
l Weather Strip: NBR, EPDM.
l Working temperature：-40℃ to 100℃，short time to 120℃.
l Packing:100pcs/bag,50pcs/bag,20pcs/bag,5pcs/bag.
l Port: Shanghai/Ningbo.
Description:
l Thread: Metric
l Materials:Part A.C.F is made of UL approved nylon PA66(fire rating UL94V-2),part B.D butadiene rubber（NBR）or EPDM.
l Protection Degree:IP68(within fasteing range,O type was her will be used in tightening part)
l Working Temperature:-40℃ to 100℃ in static state,instantaneous heat resistance up to 120℃; -20℃ to 80℃ in dynamic state,instantaneous heat resistance up to 100℃.
l Product Features:Wide rang for fastening cables,strong tensile strength,waterproof,dustproof,resistant to acid and alkali,alcohol,grease and general solvents.
l Color:Light grey(RAL7035)，black（RAL9005），other color can be customized according to request.
Specifications:
Model | Cable Range(mm) | Thread O.D AG()mm | Thread Length GL(mm) | Spanner Size(mm) |
M12×1.5 | 3-6.5 | 12 | 8 | 18/17 |
M12×1.5 | 2-5 | 12 | 8 | 18/17 |
M12×1.5 | 4-8 | 12 | 8 | 18/19 |
M12×1.5 | 2-6 | 12 | 8 | 18/19 |
M16×1.5 | 4-8 | 16 | 8 | 22/19 |
M16×1.5 | 2-6 | 16 | 8 | 22/19 |
M16×1.5 | 5-10 | 16 | 9 | 22/22 |
M16×1.5 | 3-7 | 16 | 9 | 22/22 |
M18×1.5 | 5-10 | 18 | 9 | 24/22 |
M18×1.5 | 3-7 | 18 | 9 | 24/22 |
M20×1.5 | 6-12 | 20 | 10 | 27/24 |
M20×1.5 | 5-9 | 20 | 10 | 27/24 |
M20×1.5 | 10-14 | 20 | 10 | 27/27 |
M20×1.5 | 8-12 | 20 | 10 | 27/27 |
M22×1.5 | 10-14 | 22 | 10 | 30/27 |
M22×1.5 | 8-12 | 22 | 10 | 30/27 |
M24×1.5 | 12-16 | 24 | 10 | 30/27 |
M24×1.5 | 10-14 | 24 | 10 | 30/27 |
M25×1.5 | 13-18 | 25 | 10 | 33/33 |
M25×1.5 | 9-16 | 25 | 10 | 33/33 |
M27×1.5 | 13-18 | 27 | 10 | 36/33 |
M27×1.5 | 9-16 | 27 | 10 | 36/33 |
M30×1.5 | 16-20 | 30 | 11 | 37/36 |
M30×1.5 | 13-18 | 30 | 11 | 37/36 |
M32×1.5 | 16-20 | 32 | 11 | 40/35 |
M32×1.5 | 13-18 | 32 | 11 | 40/35 |
M32×1.5 | 18-25 | 32 | 13 | 40/42 |
M32×1.5 | 13-20 | 32 | 13 | 40/42 |
M36×1.5 | 18-25 | 36 | 12 | 46/42 |
M36×1.5 | 13-20 | 36 | 12 | 46/42 |
M40×1.5 | 22-32 | 40 | 15 | 50/52 |
M40×1.5 | 20-26 | 40 | 15 | 50/52 |
M50×1.5 | 32-40 | 50 | 15 | 62/60 |
M50×1.5 | 25-31 | 50 | 15 | 62/60 |
M63×1.5 | 37-44 | 63 | 15 | 75/68 |
M63×1.5 | 29-35 | 63 | 15 | 75/68 |
